G-FRAME Controls for TRAC-DRIVES
TRAC-DRIVE G-FRAME 54 Control
• For constant speed
• Functions: Open / Stop / Close
• 3 x 230 / 400 VAC - 50 Hz - other voltages available
• For direct cabling
• W x h x d: 444 x 220 x 550 mm
€2,770.00 / pc.
€3,379.40 incl. 22% VAT
TRAC-DRIVE G-FRAME 28 Control Cabinet
• For constant speed
• Functions: Open / Stop / Close
• 3 x 230 / 400 VAC - 50 Hz - other voltages available
• For direct cabling
• W x h x d: 444 x 220 x 290 mm
€2,610.00 / pc.
€3,184.20 incl. 22% VAT
TRAC-DRIVE G-FRAME 54 Secondary Remote Control Panel
• Für Direktverkabelung
• B x H x T: 337 x 125 x 175 mm
• Ohne Zwischenposition
from€930.00 / pc.
€1,134.60 incl. 22% VAT
Control and Power Cable for fixed Speed
• Verbindungskabel zwischen Motor und Steuerung
from€180.00 / pc.
€219.60 incl. 22% VAT

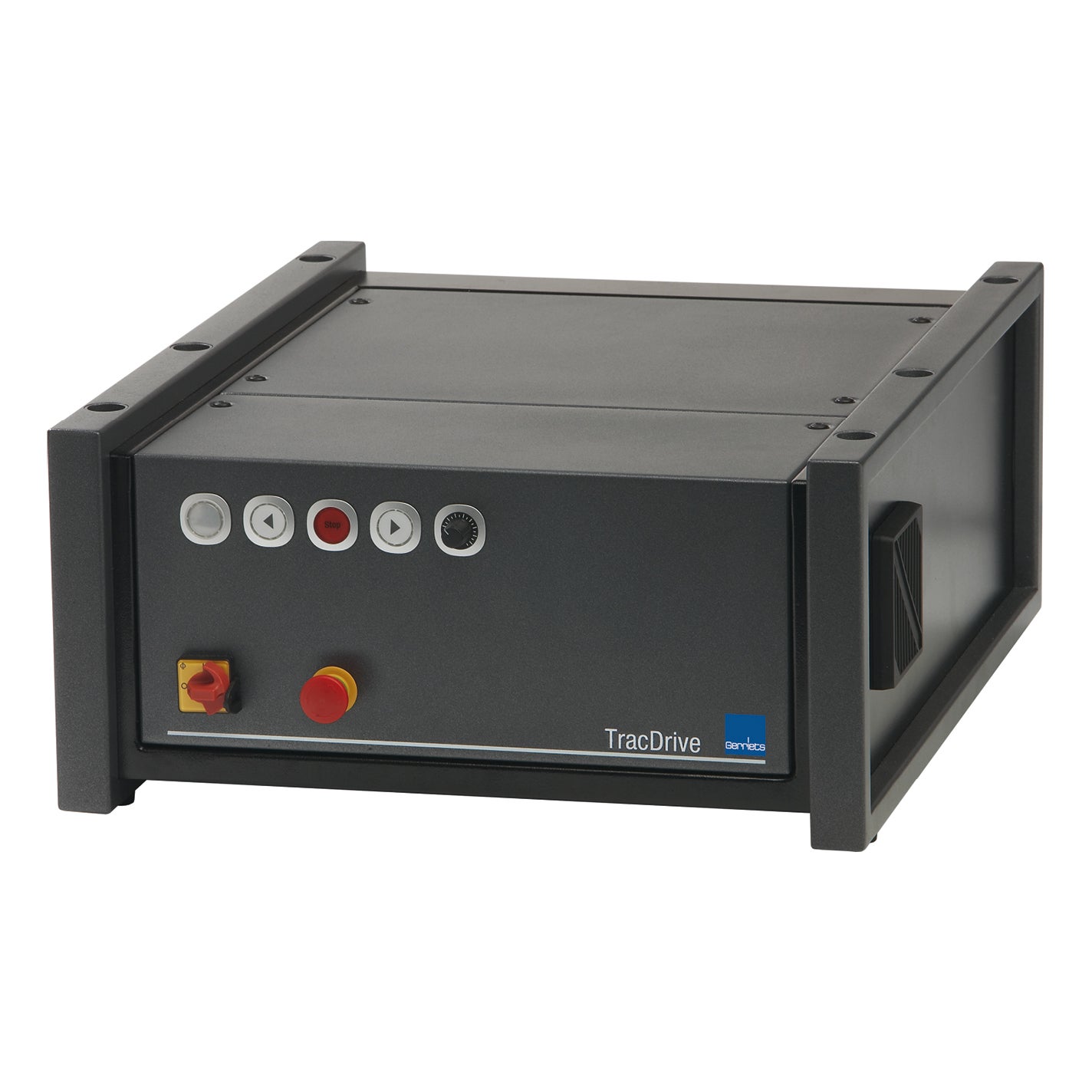

TRAC-DRIVE G-FRAME 54 Control Cabinet
• For variable speed
• Functions: Open / Stop / Close Potentiometer
• 1 x 230 VAC - 50 Hz - other voltages available, direct cabling
• W x h x d: 444 x 220 x 550 mm
€3,640.00 / pc.
€4,440.80 incl. 22% VAT
TRAC-DRIVE G-FRAME DT Remote Location Panel
• For variable speed
• For direct cabling
• W x h x d: 337 x 125 x 175 mm
• With cable, Length 15 m
• Without intermediate positions
€1,260.00 / pc.
€1,537.20 incl. 22% VAT
TRAC-DRIVE G-FRAME DT Remote Location Panel
• For variable speed
• For direct cabling
• W x h x d: 337 x 125 x 175 mm
• With cable, Length 10 m
• Without intermediate positions
€1,220.00 / pc.
€1,488.40 incl. 22% VAT
TRAC-DRIVE G-FRAME DT Remote Location Panel
• For variable speed
• For direct cabling
• Without cable
• W x h x d: 337 x 125 x 175 mm
• Without intermediate positions
€1,060.00 / pc.
€1,293.20 incl. 22% VAT
TRAC-DRIVE G-FRAME DT Remote Location Panel
• For variable speed
• For direct cabling
• W x h x d: 337 x 125 x 175 mm
• With cable, Length 20 m
• Without intermediate positions
€1,300.00 / pc.
€1,586.00 incl. 22% VAT
TRAC-DRIVE G-FRAME DT Remote Location Panel
• For variable speed
• For direct cabling
• W x h x d: 337 x 125 x 175 mm
• With cable, Length 5 m
• Without intermediate positions
€1,190.00 / pc.
€1,451.80 incl. 22% VAT
Control and Power Cable for Variable Speed
• Verbindungskabel zwischen Motor und Steuerung
from€415.00 / pc.
€506.30 incl. 22% VAT
Extension cable for Emergency STOP DMX function, 25 m
length: 25,00 m, for TUBE,
MEGASCREEN TOUR and MEGASCREEN.
€160.00 / pc.
€195.20 incl. 22% VAT
TRAC-DRIVE Emergency Stop Button for DMX-control
length: 25,00 m, for TUBE,
MEGASCREEN TOUR and MEGASCREEN.
€245.00 / pc.
€298.90 incl. 22% VAT
TRAC-DRIVE Optional Accessories for Control Unit
• Optional: maximum 3 intermediate positions (additional incremental encoder required)
€945.00 / pc.
€1,152.90 incl. 22% VAT
Hand-Held Remote Control + Receiver with Emergency Stop Circuit
• Narrow band FM modulation
• Frequency: 433-434 MHz
• PLL synthesizer
• Without speed regulation
€2,380.00 / pc.
€2,903.60 incl. 22% VAT
